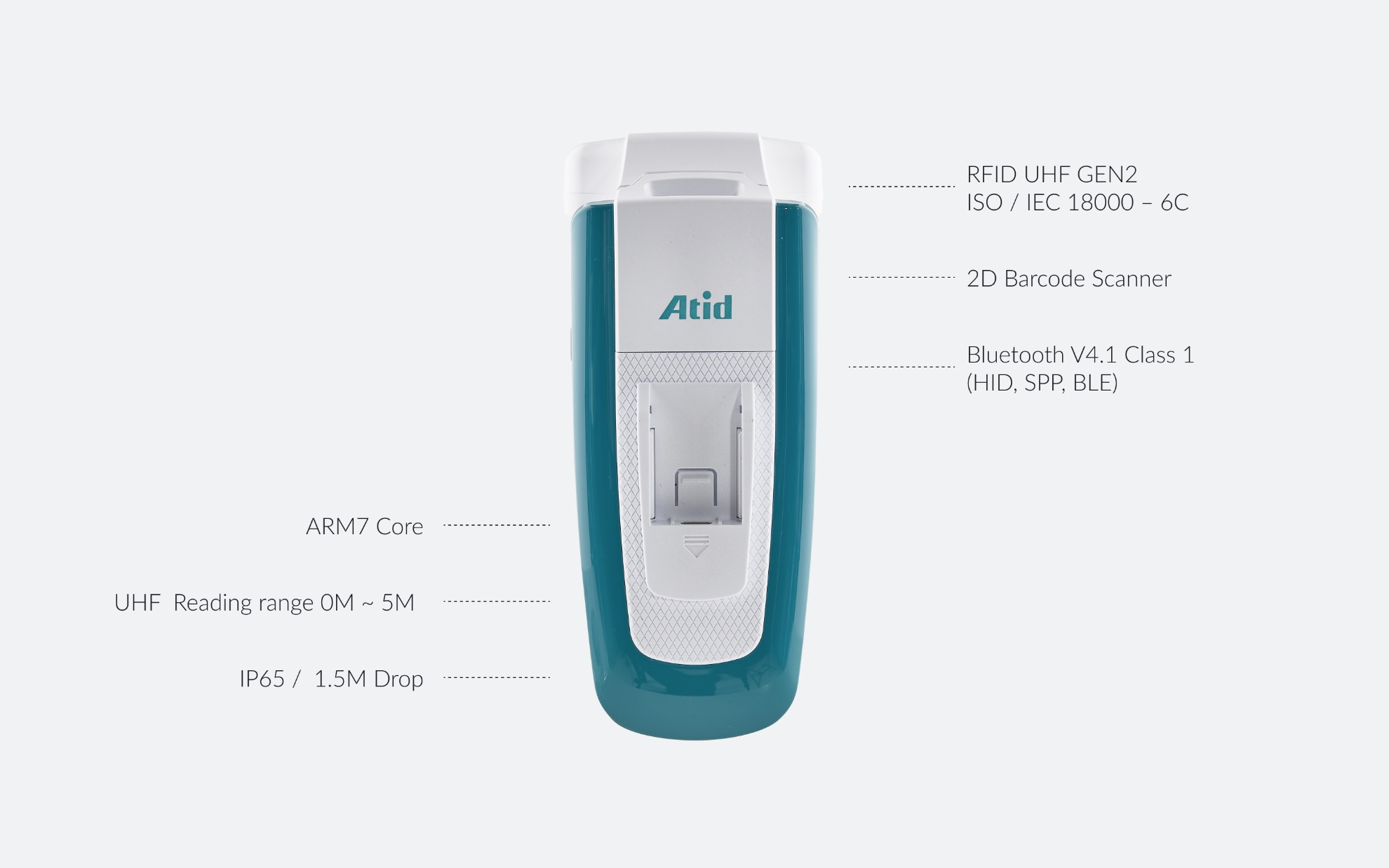

ATS100 is a SLED-type barcode/RFID reader, which has been very popular in the market. Once paired with a PDA, ATS100 can provide similar features and functionalities like an all-in-one reader. Yet at the same time, ATS100 offers much more flexible implementations for our customers. It can be paired with different mobile devices, both Android and iOS, it will allow employees to “bring your own device”, and last but not least, by separating from the Android OS, ATS100 has a much longer product life-cycle, which can be translated into better ROI.
PERFORMANCE CHARACTERISTICS
Processor ARM7 Core
PHYSICAL CHARACTERISTICS
Dimensions (W x L x H) 76.1 x 173.7 x 139.8 mm
Weight 420g (With Battery)
Power 3.7V, 5,200mAh, 19.24Wh Li-Ion battery
Input DC 5V 2A
Standard I/O Port USB type-C, VCP, HID
Audio Buzzer
DATA CAPTURE
Barcode 2D Barcode Scanner
RFID (UHF)
Frequency:
902-928MHz (US)
865-868MHz (EU)
916-921MHz (Japan: 1W LBT)
916-923MHz (Japan: 0.25W LBT)
Reading range: 0M ~ 5M (According to Tag & Environment)
RF output: 1W (MAX)
Protocol: GEN2, ISO / IEC 18000 – 6C
WIRELESS COMMUNICATION
Bluetooth V4.1 Class 1 (HID, SPP, BLE)
USER ENVIRONMENT
Operating temperature -20°C to 60°C
Storage temperature -30°C to 70°C
Charging temperature 0°C to 45°C
Humidity 95% non – condensing
Drop Specification 1.5M Drop to steel plate
Dust & Water Proof IP65
ADDITIONAL FEATURES
Notification LED, Buzzer, Vibrator
CRADLE (Option)
Standard Interface Charge only (Option), USB type-C

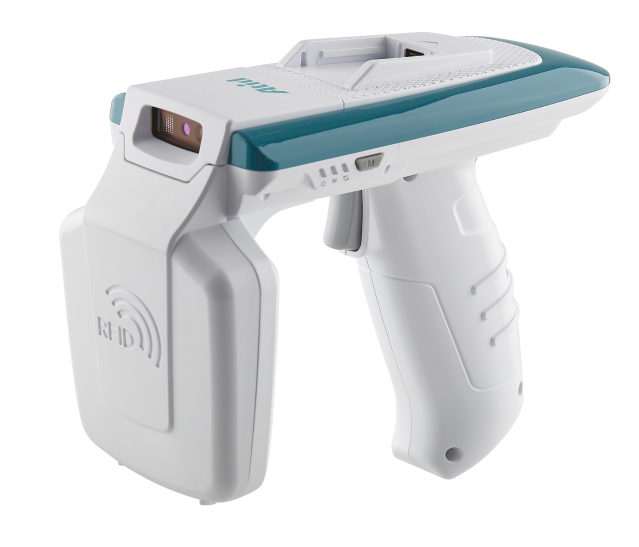

GUN HANDLE (Option)
Gun Handle Battery Lithium-Ion 3.7V 5,200mAh (Rechargeable)
MOUNT (Option)
Mount Type QUAD LOCK® Mount Mechanism
