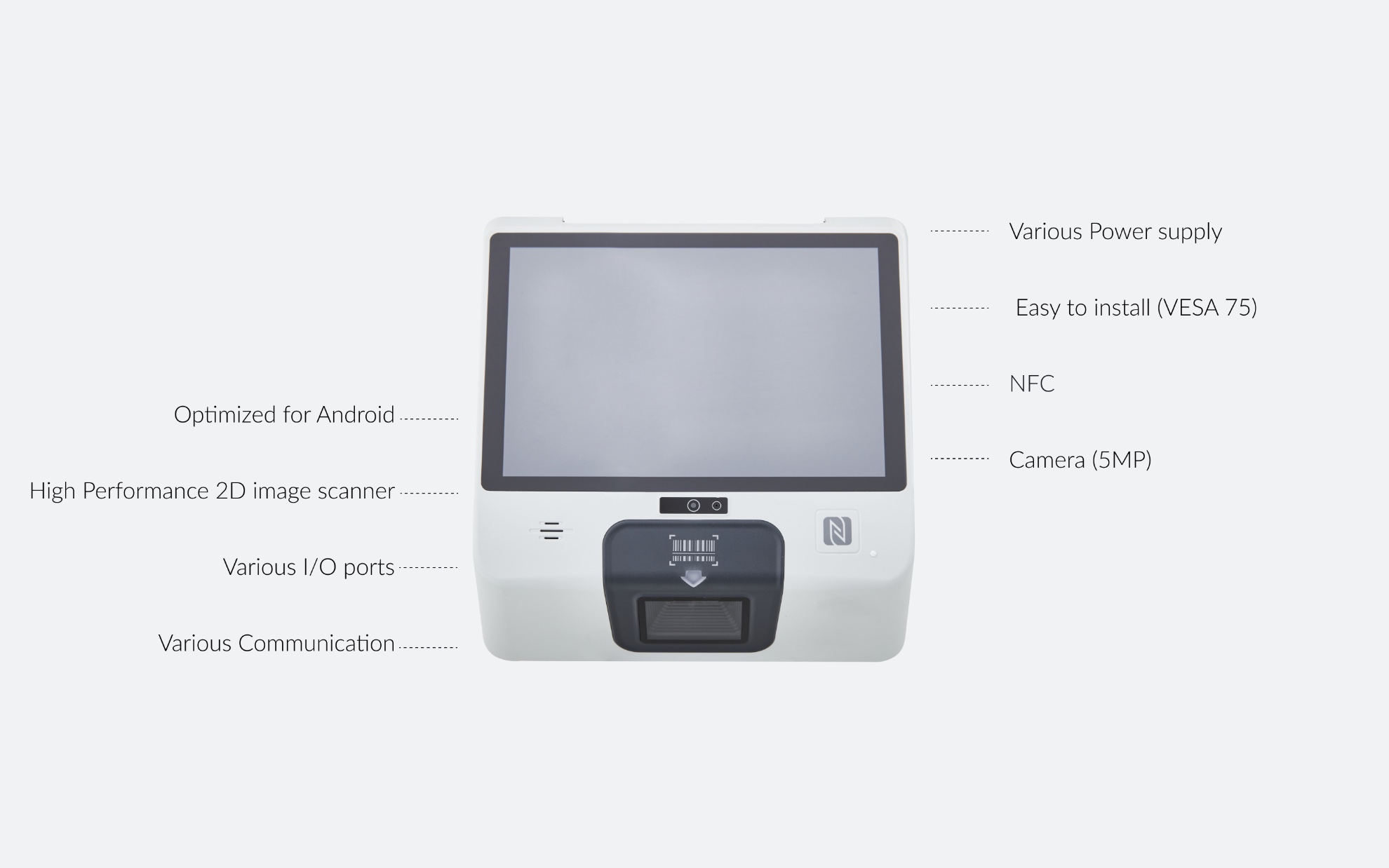

ATC100 is a programmable multi-functional Android console. The device can be wall-mounted, and it can easily programmed to perform variance of tasks, such as pricing checking, access control, attendance and so on. With the built-in 2D bar-code scanner, camera, as well as a whole array of I/O ports (2USB, 2RS45, 1 Lan, 1 HDMI, 1 Micro SD Card) , ATC100 is the most versatile device from the hardware perspective.
PERFORMANCE CHARACTERISTICS
CPU Rockchip RK3288
Memory
RAM 2GB (4GB Optional)
ROM 8GB (32GB Optional)
OS Android 7.X
PHYSICAL CHARACTERISTICS
Dimensions (mm) 270 x 245 x 40 mm
Power 12V 3A , PoE+ (Power over Ethernet 802.3af)
Display 10.1\’\’ (1280 X 800) with 5-point PCAP Touch
I/O Port 1 USB, 1USB OTG, 1 HDMI, 1 Audio, 3 COM (RJ45 2/LAN 1), 1 Micro SD
Speaker 2W
DATA CAPTURE
NFC (Optional) ISO 14443 A, ISO/IEC 15693, Mifare, Mifare +, Felica
Barcode 1D / 2D
Camera (Optional) 5MP
COMMUNICATION
Ethernet 10/100/1000MBps
Wi-Fi 2.4 GHz
Bluetooth BT 4.0
USER ENVIRONMENT
Operating Temperature 0°C to 50°C
Storage Temperature -40°C to 60°C
Humidity 0 ~ 95%
